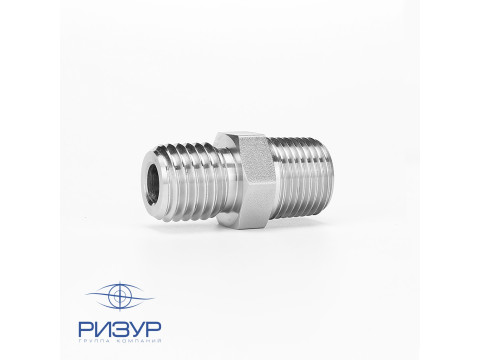

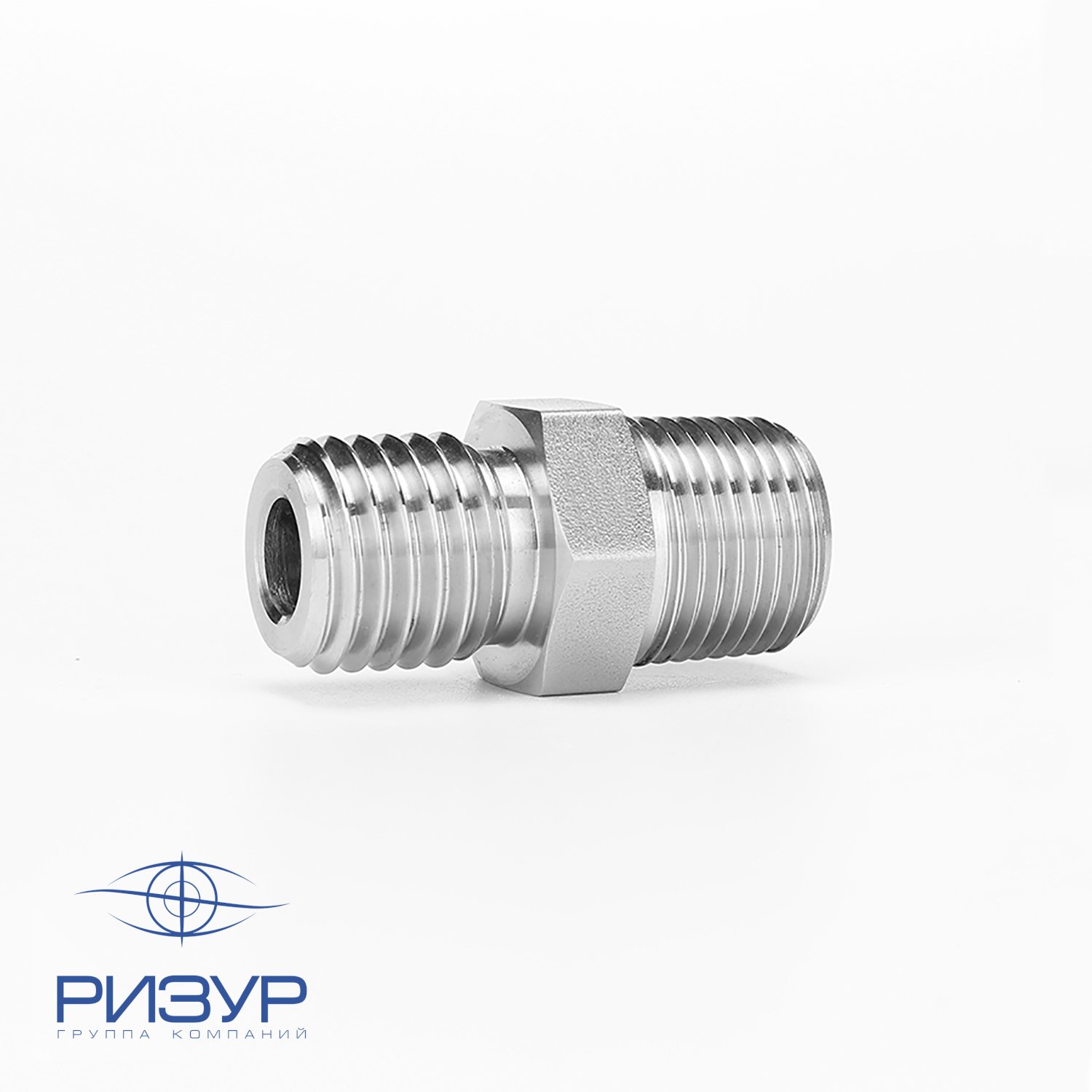

Ниппель переходной RizurLok-NP - фитинг с наружной резьбой, предназначенный для соединения отрезков труб разного диаметра или присоединения отрезка трубы к штуцеру, приборам или оборудованию.
ТУ 28.99.39-001-12189681-2018
Ниппель переходной с резьбами NPT
| RizurLok-NP-1/4NPT(Pm)-1/8NPT(Pm) |
NPT 1/4" |
NPT 1/8" |
| RizurLok-NP-3/8NPT(Pm)-1/8NPT(Pm) |
NPT 3/8" |
NPT 1/8" |
| RizurLok-NP-3/8NPT(Pm)-1/4NPT(Pm) |
NPT 3/8" |
NPT 1/4" |
| RizurLok-NP-1/2NPT(Pm)-1/8NPT(Pm) |
NPT 1/2" |
NPT 1/8" |
| RizurLok-NP-1/2NPT(Pm)-1/4NPT(Pm) |
NPT 1/2" |
NPT 1/4" |
| RizurLok-NP-1/2NPT(Pm)-3/8NPT(Pm) |
NPT 1/2" |
NPT 3/8" |
| RizurLok-NP-3/4NPT(Pm)-1/4NPT(Pm) |
NPT 3/4" |
NPT 1/4" |
| RizurLok-NP-3/4NPT(Pm)-1/2NPT(Pm) |
NPT 3/4" |
NPT 1/2" |
| RizurLok-NP-1NPT(Pm)-1/4NPT(Pm) |
NPT 1" |
NPT 1/4" |
| RizurLok-NP-1NPT(Pm)-1/2NPT(Pm) |
NPT 1" |
NPT 1/2" |
| RizurLok-NP-1NPT(Pm)-3/4NPT(Pm) |
NPT 1" |
NPT 3/4" |
Ниппель переходной с резьбами G
| RizurLok-NP-1/4G(Pm)-1/8G(Pm) |
G 1/4" |
G 1/8" |
| RizurLok-NP-3/8G(Pm)-1/8G(Pm) |
G 3/8" |
G 1/8" |
| RizurLok-NP-3/8G(Pm)-1/4G(Pm) |
G 3/8" |
G 1/4" |
| RizurLok-NP-1/2G(Pm)-1/4G(Pm) |
G 1/2" |
G 1/4" |
| RizurLok-NP-3/4G(Pm)-1/2G(Pm) |
G 3/4" |
G 1/2" |
| RizurLok-NP-1G(Pm)-3/4G(Pm) |
G 1" |
G 3/4" |
Ниппель переходной c NPT на другие резьбы
| RizurLok-NP-1/2NPT(Pm)-1/4G(Pm) |
NPT 1/2" |
G 1/4" |
| RizurLok-NP-1/2NPT(Pm)-3/8G(Pm) |
NPT 1/2" |
G 3/8" |
| RizurLok-NP-3/4NPT(Pm)-1/2G(Pm) |
NPT 3/4" |
G 1/2" |
| RizurLok-NP-1/4NPT(Pm)-1/8G(Pm) |
NPT 1/4" |
G 1/8" |
| RizurLok-NP-1/4NPT(Pm)12M(Pm) |
NPT 1/4" |
M12x1.5 |
| RizurLok-NP-1/4NPT(Pm)16M(Pm) |
NPT 1/4" |
M16x1.5 |
| RizurLok-NP-1/4NPT(Pm)20M(Pm) |
NPT 1/4" |
M20x1.5 |
| RizurLok-NP-1/2NPT(Pm)20M(Pm) |
NPT 1/2" |
M20x1.5 |
| RizurLok-NP-1/4NPT(Pm)20M(Pm) |
NPT 1/4" |
M20x1.5 |
Ниппель переходной разные резьбы
| RizurLok-NP-1/2RT(Pm)-1/8RT(Pm) |
RT 1/2" |
RT 1/8" |
| RizurLok-NP-1/2G(Pm)-1/4NPT(Pm) |
G 1/2" |
NPT 1/4" |
| RizurLok-NP-1/2G(Pm)20M(Pm) |
G 1/2" |
M20x1.5 |
| RizurLok-NP20M(Pm)-1/4G(Pm) |
M20x1.5 |
G 1/4" |
| RizurLok-NP20M(Pm)-1/4NPT(Pm) |
M20x1.5 |
NPT 1/4" |

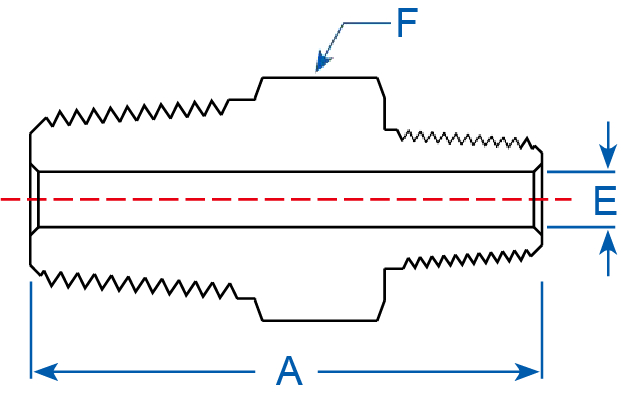

Чертежи
